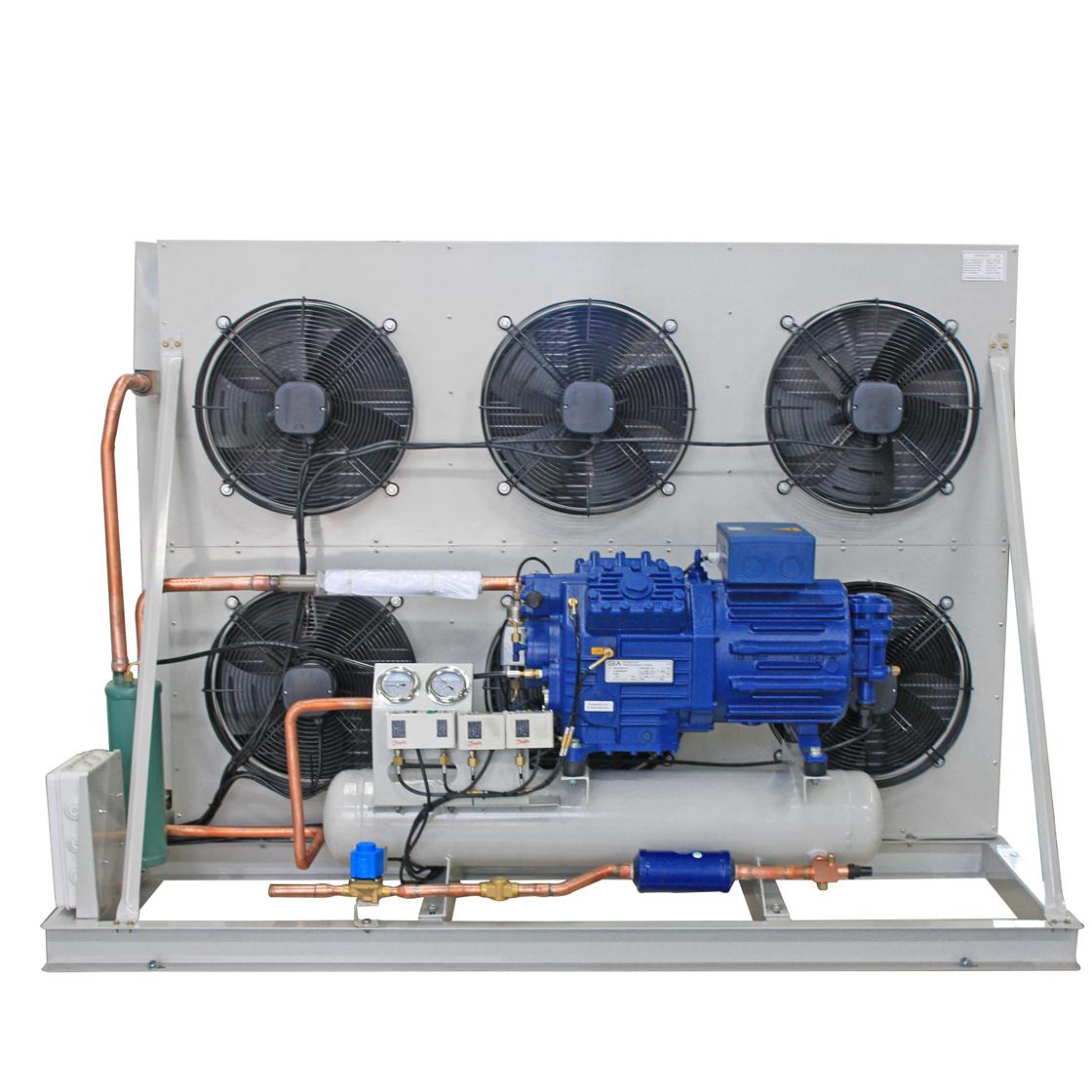

产品名称：XRB Series Semi-hermetic Condensing Units( Bock)
产品分类： XRB Series Semi-hermetic Conde
产品型号： XJW --ZC
工作电压：380V/3/50HZ;220V/2/50HZ
工作温度：-25℃ ~15 ℃
功 率：0.2HP-12HP
电子邮件：shs@shxurui.cn
订购热线：021-39905996
- 产品特点 标准配置 技术参数 常见问题 售后服务
-
This series products feature box type structure that is compact and pleasant looking applicable to cold display cases cold storage rooms ice producers etc. The applicable temperature ranges are: -5℃~ 5℃ and -20℃~-15℃. They can be used in hotels restaurants medicines agricutureral chemicals industries all other place where cold storage is needed.
World famous brand refrigeration parts are employed for all products:
fans with 6 pole external rotor motors;
For the units with 2 fans the condenser fans are automatically controlled.
Protection devices for phase sequence over loading sub-heating lack of phase high & low pressure etc.
-
4.1 Units with TECUMSEH COMPRESSOR, R404A; condensing Temperature for test: 45℃
Model XJW0.6ZTY XJW01ZTY XJW1.7ZTY XJW02ZTY XJW03ZTY Room temperature -5~5℃ Refrigerant R404A Power supply 220V/50HZ 380V/50HZ Comp Model Hermetical Type CAJ9480Z CAJ9510Z CAJ4519Z TFH4524Z TFH4531Z Max current (A) 6.6 8.0 15.4 6.3 8.2 Con fan Fan number 1 1 1 1 1 Air flow (m3/h) 1700 1700 1700 3200 3200 Fan power (W) 80 80 80 100 100 Fan voltage 220V/50HZ Cap & Input Te
-5℃Cap(W) 1874 2310 4070 4830 6143 Input (W) 820 980 1850 2090 2610 Te
-7℃Cap(W) 1553 1924 3340 3890 4990 Input (W) 760 910 1720 1920 2385 Te
-10℃Cap(W) 1266 1572 2700 3050 3970 Input (W) 700 840 1590 1740 2150 Pipe Gas (inch) 1/2SAE 5/8SAE 5/8SAE 5/8SAE 7/8SAE Liquid (inch) 3/8SAE 3/8SAE 3/8SAE 3/8SAE 3/8SAE Size Drawing NO.1 NO.1 NO.1 NO.2 NO.2 Model XJW01DTY XJW1.5DTY XJW02DTY XJW03DTY Room temperature -15℃ ~-20 ℃ Refrigerant R404A Power supply 220V/50HZ 380/50HZ Comp Model Hermetical reciprocating Type CAJ2446Z CAJ2464Z TFH2480Z TFH2511Z Max current (A) 7.9 10.0 4.8 5.0 Con fan Fan number 1 1 1 1 Air flow (m3/h) 1700 1700 3200 4600 Fan power (W) 80 80 100 160 Fan voltage 220V/50HZ Cap & Input Te
-20℃Cap(W) 1296 1673 2416 3348 Input (W) 950 1250 1837 2312 Te
-25℃Cap(W) 1005 1300 1865 2518 Input (W) 837 1100 1585 1960 Te
-30℃Cap(W) 755 990 1347 1817 Input (W) 723 955 1326 1635 Pipe Gas (inch) 1/2SAE 5/8SAE 5/8SAE 5/8SAE Liquid (inch) 3/8SAE 3/8SAE 3/8SAE 3/8SAE Size Drawing NO.1 NO.1 NO.2 NO.2
4.2 Units with Copeland ZB COMPRESSOR, R404A; condensing Temperature for test: 45℃
Model XJW02ZCY XJW03ZCY XJW04ZCY XJW05ZCY XJW06ZCY XJW07ZCY XJW08ZCY Room temperature 5℃ ~-15 ℃ Refrigerant R404A Power supply 380V/50 HZ Comp Model Scroll Type ZB15KQE ZB21KQE ZB29KQE ZB38KQE ZB45KQE ZB48KQE ZB58KQE Max current (A) 6.0 8.0 11.0 12.5 16.1 17.0 23.0 Con fan Fan number 1 1 2 2 2 2 2 Air flow (m3/h) 3200 4600 6400 9200 9200 10580 10580 Fan power (W) 100 160 100×2 160×2 160×2 230×2 230×2 Fan voltage 220V/50HZ Cap & Input Te
0℃Cap(W) 4760 7000 9480 11950 14000 15300 18600 Input (W) 1720 2480 3300 4150 4700 5170 6400 Te
-5℃Cap(W) 3820 5740 7800 9830 11500 12550 15300 Input (W) 1760 2500 3300 4200 4730 5210 6360 Te
-10℃Cap(W) 3080 4680 6360 8000 9380 10200 12400 Input (W) 1820 2510 3330 4200 4750 5230 6320 Te
-15℃Cap(W) 2430 3780 5130 6480 7580 8180 9840 Input (W) 1880 2510 3330 4210 4760 5240 6320 Te
-20℃Cap(W) 1870 3020 4100 5170 6050 6500 7520 Input (W) 1930 2520 3340 4210 4770 5240 6360 Pipe Gas (inch) 3/4SAE 3/4SAE 7/8SAE 7/8SAE 7/8SAE 7/8ODF 1-1/8ODF Liquid (inch) 3/8SAE 3/8SAE 1/2SAE 1/2SAE 1/2SAE 5/8ODF 5/8ODF Size Drawing NO.2 NO.2 NO.3 NO.3 NO.3 NO.4 NO.4
4.3 Units with Bitzer Semi hermetical COMPRESSOR, R404A; condensing Temperature for test: 50℃
Model XJW02ZBY XJW03ZBY XJW04ZBY XJW05ZBY XJW06ZBY XJW07ZBY Room temperature 5℃ ~-5 ℃ Refrigerant R404A Power supply 380V/50 HZ Comp Model Hermetical reciprocating Type 2GES-2Y 2DES-3Y 2CES-4Y 4FES-5Y 4EES-6Y 4DES-7Y Max current (A) 4.7 7.8 9.4 10.8 13.2 15.9 Con fan Fan number 1 2 2 2 2 2 Air flow (m3/h) 3200 6400 9200 9200 10580 10580 Fan power (W) 100 100×2 160×2 160×2 230×2 230×2 Fan voltage 220V/50HZ Cap & Input Te
0℃Cap(W) 4710 8250 10130 11730 14390 17550 Input (W) 2200 3230 3990 4450 5560 6570 Te
-5℃Cap(W) 3890 6610 8140 9400 11550 14110 Input (W) 2060 2980 3670 4120 5120 6140 Te
-10℃Cap(W) 3180 5200 6430 7390 9110 11150 Input (W) 1900 32720 3330 3760 4650 5650 Pipe Gas (inch) 5/8ODF 7/8ODF 7/8ODF 7/8ODF 1-1/8ODF 1-1/8ODF Liquid (inch) 3/8ODF 1/2ODF 1/2ODF 1/2ODF 1/2ODF 1/2ODF Size Drawing NO.2 NO.3 NO.3 NO.3 NO.4 NO.4
Model XJW 02DBY 03DBY 04DBY 05DBY 06DBY 09DBY 12DBY 14DBY Room temperature -15℃~-20℃ Refrigerant R404A Power supply 380V/50HZ Comp Model Scroll Type 2DES-2Y 4FES-3Y 4EES-4Y 4DES-5Y 4CC6Y 4TSE-9Y 4PES-12Y 4NES-14Y Max current (A) 6.9 9.2 10.7 13.5 15.9 17.0 21.0 24.0 Con fan Fan number 1 1 1 2 2 2 2
No.1 No.2
